Check Point 1400 Appliances

Sorry, this product is no longer available, replaced by the 1500 Series.

Big security for small branches

Small and remote branch offices need the same protections from sophisticated cyber attacks and zero-day threats as main corporate offices. The Check Point 1400 appliances are ideal for small and branch office deployments, delivering all-in-one advanced threat prevention, flexible network connectivity, and maximum port density—all in a compact, high-performance desktop form factor.

Check Point 1400 Model Lineup:

Check Point 1430 Appliance

Wireless Model!

2000 Mbps Firewall Bandwidth
300 Mbps NGFW Throughput
225 Mbps Threat Prevention Throughput
1 GbE (RJ45)

Check Point 1450 Appliance

Wireless Model!

2500 Mbps Firewall Bandwidth
490 Mbps NGFW Throughput
400 Mbps Threat Prevention Throughput
1 GbE (RJ45)

Check Point 1470 Appliance

Wireless Model!

3200 Mbps Firewall Bandwidth
625 Mbps NGFW Throughput
500 Mbps Threat Prevention Throughput
GbE (RJ45/SFP)

Check Point 1490 Appliance

Wireless Model!

4000 Mbps Firewall Bandwidth
800 Mbps NGFW Throughput
550 Mbps Threat Prevention Throughput
GbE (RJ45/SFP)

Overview:

The Branch Business Challenge

In the age of global business and a more distributed workforce, remote and branch staff demand access to corporate resources in order to work effectively and efficiently. However, even a small data breach can expose companies to crippling lawsuits, penalties and loss of reputation. Branch offices need an inexpensive, yet effective solution to provide secure access to critical resources from anywhere, while minimizing the risk of a data breach.

Our Solution

The Check Point 1400 Appliance family is a simple, affordable and easy to deploy all-in-one solution for delivering industry leading security to protect the weakest link in your enterprise network—the remote branch offices. Protect against cyber threats with Check Point Threat Prevention all in a quiet, compact desktop form factor.

The Most Advanced Threat Prevention

Comprehensive protections, including Check Point SandBlast Zero Day technologies

Complete Protection Without Compromise

Up to 740 Mbps of throughput and up to 1.15 Gbps of Next Generation Firewall throughput

Rapid Deployment, Centrally Managed

Central management for ease of deployment and use

Setup is done in minutes using our step-by-step configuration wizard. The 1400 Appliances are manageable centrally by means of the Check Point enterprise Security Management or Multi-Domain products. Available in two appliances, the 1430/1450 and the 1470/1490, these appliances come standard with eight (8) 1-Gigabit or sixteen (16) Ethernet ports respectively. Connect securely from any device directly or through secure authenticated Wi-Fi.

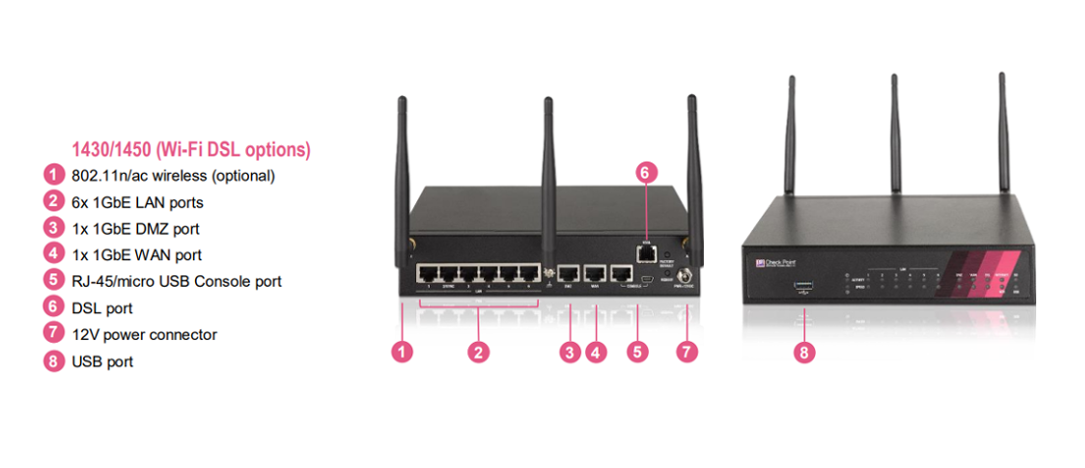

1430/1450 Model Specifications:

	1430	1450
Ideal Testing Conditions
Firewall 1518 Byte UDP Packets (Mbps)	2,000	2,500
IPS Throughput (Mbps)	325	575
NGFW Throughput (Mbps) ¹	300	490
Threat Prevention (Mbps) ²	225	400
VPN AES-128 Throughput (Mbps)	275	500
Connections per Second	20,000	27,000
Concurrent Connections	500,000	500,000
Real-World Production Conditions
SecurityPower	75	141
Firewall Throughput (Mbps)	900	1,100
IPS Throughput (Mbps)	175	225
NGFW Throughput (Mbps) ¹	100	210
Threat Prevention (Mbps) ²	90	150
Software
Security	Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP
Mobile Access User License	100 in default package, 150 maximum	100 in default package, 150 maximum
Hardware
WAN	1x 10/100/1000Base-T RJ-45 port
DMZ	1x 10/100/1000Base-T RJ-45 port
LAN Switch	6x 10/100/1000Base-T RJ-45 ports
Wi-Fi (optional)	802.11 b/g/n/ac MIMO 3x3
Radio Band (association rate)	1 radio band: 2.4Ghz (max 450 Mbps) or 5Ghz (max 1300 Mbps)
Console Port	1x RJ-45, 1x Mini USB
USB Port	1x USB 3.0
SD Card Slot	Micro SDHC slot
3G/4G Modem Support	Yes
DSL (optional)	VDSL: G.993.1 (VDSL), G.993.2 (VDSL2), G.993.5 (VDSL2 Vectoring), G.998.4 (G.INP) VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a ADSL: Annex A (POTS), Annex B (ISDN), G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+), Annex M (ADSL2/2+) ,Annex L Reach-extended (ADSL2) Dying Gasp, DSL Forum TR-067, TR-100, TR-114 Conformity
Dimensions
Enclosure	Desktop
Dimensions WxHxD	210 x 42.5 x 155 mm, 8.3 x 1.7 x 6.1 in.
Weight	1.3 kg (2.8 lbs.)
Environment
Operating / Storage	0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input	110 – 240V, 50 – 60 Hz
Power Supply Rating	12V/3.33A 40W desktop adaptor
Power Consumption (Max)	25W (non-Wi-Fi), 30W (Wi-Fi)
Heat Dissipation	85.3 BTU/hr (non-Wi-Fi), 102.4 BTU/hr (Wi-Fi)
Certifications
Safety/Emissions/Environment	UL/c-UL, IEC 60950 CB / EMC: EN55022 Class B, FCC: Part 15 Class B / RoHS, REACH, WEEE

Notes:
¹ Includes Firewall, Application Control and IPS
² Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot and SandBlast Zero-Day Protection

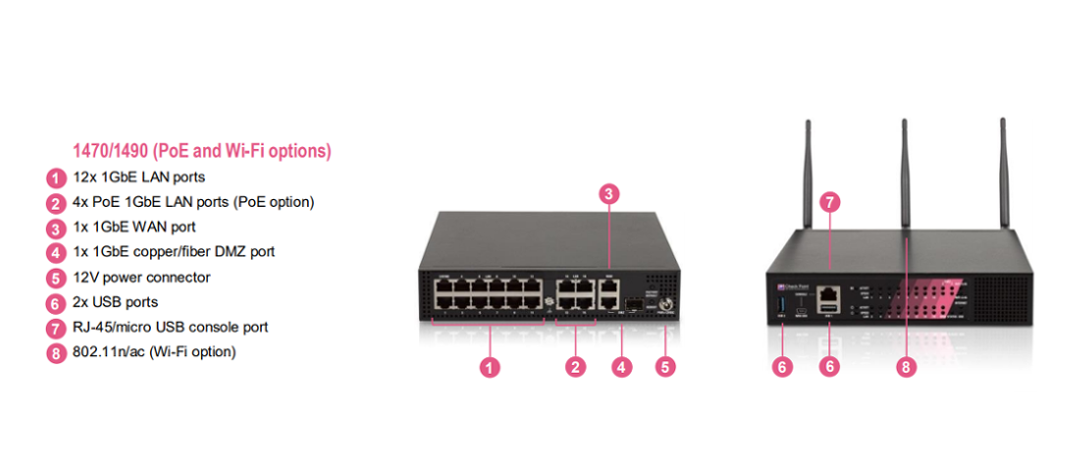

1470/1490 Model Specifications:

	1470	1490
Ideal Testing Conditions
Firewall 1518 Byte UDP Packets (Mbps)	3,200	4,000
IPS Throughput (Mbps)	700	800
NGFW Throughput (Mbps) ¹	625	800
Threat Prevention (Mbps) ²	500	550
VPN AES-128 Throughput (Mbps)	500	1,000
Connections per Second	30,000	40,000
Concurrent Connections	500,000	500,000
Real-World Production Conditions
SecurityPower	194	233
Firewall Throughput (Mbps)	1,600	1,800
IPS Throughput (Mbps)	285	375
NGFW Throughput (Mbps) ¹	240	310
Threat Prevention (Mbps) ²	175	220
Software
Security	Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP
Mobile Access User License	200 in default package, 300 maximum	200 in default package, 300 maximum
Hardware
WAN	1x 10/100/1000Base-T RJ-45 port
DMZ	1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP (transceiver not included) port
LAN Switch	16x 10/100/1000Base-T RJ-45 ports (total)
PoE Ports (optional)	4x 10/100/1000Base-T RJ-45 out of the 16 LAN ports
Wi-Fi (optional)	802.11 b/g/n and 802.11 n/ac MIMO 3x3
Radio Band (association rate)	2 concurrent: 2.4Ghz (max 450 Mbps) and 5Ghz (max 1300 Mbps)
Console Port	1x RJ-45, 1x Mini USB
USB Port	2x USB 3.0
SD Card Slot	Micro SDHC slot
3G/4G Modem Support	Yes
Dimensions
Enclosure	Desktop
Dimensions WxHxD	210 x 42.5 x 200.5 mm, 8.3 x 1.7 x 7.9 in.
Weight	1.6 kg (3.6 lbs.)
Environment
Operating / Storage	0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input	110 – 240V, 50 – 60 Hz
Power Supply Rating	12V/5.4A 65W, 12V/12.5A 150W (PoE option)
Total Available PoE Power	Max load on each 4x PoE ports: 15.4 W (802.3af), or use only 2x PoE ports with max load of 31W (802.3at) each
Power Consumption (Max)	55W (non-Wi-Fi), 60W (Wi-Fi), 130W (PoE)
Heat Dissipation	187.7 BTU/hr (non-Wi-Fi), 204.7 BTU/hr (Wi-Fi), 443.6 BTU/hr (PoE)
Certifications
Safety/Emissions/Environment	UL/c-UL, IEC 60950 CB / EMC: EN55022 Class B, FCC: Part 15 Class B / RoHS, REACH, WEEE

Notes:
¹ Includes Firewall, Application Control and IPS
² Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot and SandBlast Zero-Day Protection

Features & Benefits:

Product Benefits

All-in-one protection against viruses, spam, bots, dangerous applications, malicious websites and zero-day threats with SandBlast
Continuous security updates from ThreatCloud^TM
Fast set-up, instant protection
Secure remote access for your mobile workers
Multiple management options to address any organization’s needs

Simplified web-based local management
Centralized with our enterprise Security Management or Multi-Domain Management products

Product Features

Highest ranked Next Generation Firewall
Profile-based management designed for large-scale deployments
Multiple internet access options including DSL and support of external 3G/4G/LTE modems
Integrated 802.11ac wireless security with guest access
Power over Ethernet (PoE and PoE+) option

Documentation:

Download the Check Point 1400 Security Appliances Datasheet (.PDF)
