Check Point 1490 Security Appliance
Branch and small office security with a Wi-Fi option

Overview:

The Branch Office Challenge

In the age of global business and a more distributed workforce, remote and branch staff demand access to corporate resources in order to work effectively and efficiently. However, even a small data breach can expose companies to crippling lawsuits, penalties and loss of reputation. Branch offices need an inexpensive, yet effective solution to provide secure access to critical resources from anywhere, while minimizing the risk of a data breach.

Our Solution

The Check Point 1400 Appliance family is a simple, affordable and easy to deploy all-in-one solution for delivering industry leading security to protect the weakest link in your enterprise network—the remote branch offices. Protect against cyber threats with Check Point Threat Prevention all in a quiet, compact desktop form factor.

Access Control	Threat Prevention	VPN
Firewall Application Control URL Filtering User Awareness	IPS Antivirus Anti-Bot Anti-Spam	Remote Access Site-to-Site

Setup is done in minutes using our step-by-step configuration wizard. The 1400 Appliances are manageable centrally by means of the Check Point enterprise Security Management or Multi-Domain products.

Available in two appliances, the 1430/1450 and the 1470/1490, these appliances come standard with eight (8) 1-Gigabit or sixteen (16) Ethernet ports respectively. Connect securely from any device direct or through secure authenticated Wi-Fi. The Wi-Fi can even be partitioned separating guest from employee access. Network settings allow for URL and application filtering by employee function, and secure communications between offices is accommodated with VPN. Remote access encrypts data traffic whether you are on the road or in the office. The 1400 Appliances offer monitoring of network traffic by user and easily generate activity reports and logs.

Product Benefits

• All-in-one protection against viruses, spam, bots, dangerous applications and malicious websites
• Continuous security updates from ThreatCloud TM
• Fast set-up, instant protection
• Secure remote access for your mobile worker
• Easy to understand usage reports
• Multiple management options to address any organization’s needs -
  Simplified web-based Local Management -
  Centralized with our enterprise Security Management or Multi-Domain Management products

Product Features

• Highest ranked Next Generation Firewall
• Profile-based management designed for large-scale deployments
• Multiple internet access options including support of external 3G/4G/LTE modem
• Integrated 802.11ac wireless security with guest access

Key Features:

Big security in a compact footprint

• Fully integrated next-generation threat prevention including: firewall, IPS, IPsec VPN, application control, anti-spam, antivirus, anti-bot, URL filtering, email security, and user awareness
• Continuous security updates from Check Point ThreatCloud™
• Compact and quiet desktop form factor

Easy to deploy, centrally managed

• Rapid deployment via an intuitive, web-based management interface and pre-defined security policies
• Large scale, profile-based central management for maintaining hundreds of devices

Extensible security tailored for small and branch offices

• Optimized to deliver up to 1800 Mbps of real-world firewall throughput and up to 220 Mbps of real-world threat prevention throughput
• Flexible Internet access options include 1GbE copper or fiber ports and support for external 3G/4G/LTE wireless modems
• Up to 18 1GbE ports and 802.11ac Wi-Fi connectivity

Features

All-inclusive threat prevention security without compromise

Branch offices are ripe targets for cyber criminals looking for unrestricted access to corporate networks: the fact that they are smaller offices doesn’t mean they are smaller targets. This is why the Check Point 1400 appliances are based on the same industry-leading threat prevention technology that is used to secure Fortune 100 organizations, optimized on an enterprise-grade chassis for maximum performance.

Comprehensive security protections include firewall, VPN, IPS, antivirus, anti-bot, application visibility and control, SSL encrypted traffic inspection, URL filtering, and email security—all in a quiet, compact desktop form factor. What’s more, the 1400 appliances receive continuous updates from Check Point ThreatCloud™, providing maximum protection against the latest threats and malicious activity.

Flexible connectivity, high port density

The 1400 appliances are built to accommodate maximum flexibility for greater productivity in today’s enterprise branch offices. Flexible connectivity options include:

• Up to 18 1Gbps Ethernet ports
• USB 3.0 ports supporting external 3G/4G/LTE modems for additional WAN connectivity and redundancy
• Integrated 802.11ac Wi-Fi supporting WPA and WPA2 authentication as well as secure guest access

Rapid setup and configuration

Bringing advanced threat prevention security to every business location has traditionally been prohibitive due to a lack of dedicated IT staff and resources at branch offices. The Check Point 1400 appliances are designed to be easy to deploy and use—even for non-technical staff. Initial setup is performed through an easy-to-use management interface, and configuration is a snap with a simple yet powerful start-up wizard, allowing the 1400 appliances to be deployed in minutes.

Local and central management options

The Check Point 1400 appliances are as easy to manage as they are to deploy, whether you have technical staff on hand or not. The intuitive, web-based management interface allows for comprehensive on-site management and reporting of all security activity. Branch deployments can also be centrally managed with Check Point enterprise security management or multi-domain management products, enabling organizations to define a consistent security policy and device profile for thousands of 1400 appliances.

Technical Specifications:

1430/1450 (Wi-Fi option)

1. 802.11n/ac wireless (optional)
2. 6 x 1 GbE LAN ports
3. 1 GbE DMZ port
4. 1 GbE WAN port
5. RJ-45/micro USB Console port
6. 12V power connector
7. USB port

Check Point 1430 and 1450 Appliances Overview

1470/1490 (Wi-Fi option)

1. 802.11n/ac wireless (optional)
2. 12 of 16 x 1GbE LAN ports
3. 4 of 16 1GbE LAN ports
4. 1 1GbE WAN port
5. 1 1GbE copper/fiber DMZ port
6. 12V power connector
7. 2 USB ports
8. RJ-45/micro USB Console port

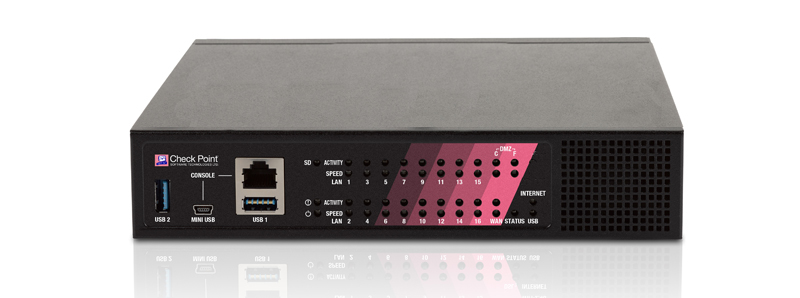

Check Point 1470 and 1490 Appliances Overview

	1430	1450	1470	1490
Production Performance (Real-World Traffic Blend) 1
SecurityPower	75	141	194	233
Firewall throughput (Mbps)	900	1100	1600	1800
Threat prevention (Mbps)	90	150	175	220
Ideal Testing Conditions Performance (RFC 3511, 2544, 2647, 1242)
Firewall UDP 1518 byte (Mbps)	2000	2500	3200	4000
Connections per second	18K	25K	30K	40K
Concurrent connections	500K	500K	500K	500K
VPN AES-128 (Mbps)	250	500	500	1000
WAN	1X 1 GbE Copper		1X 1 GbE Copper
DMZ	1X 1 GbE Copper		1X 1 GbE Copper
LAN	6x 1GbE		16x 1GbE
DSL (optional)	VDSL22		VDSL22
Wi-Fi (optional)	802.11 b/g/n/ac MIMO 3x3		802.11 b/g/n and 802.11 n/ac MIMO
Radio band	2.4GHz or 5GHz		2 concurrent 2.4Ghz and 5Ghz
USB ports	1		2
SD Card Slot	1 (Micro SDHC)		1 (Micro SDHC)
3G/4G modem support	Yes, see sk92809		Yes, see sk92809
Mounting	Desktop and rack		Desktop and rack
AC	100-240V, 50 - 60 Hz
Dimensions (WxHxD)	210 x 42.5 x 155 mm		210 x 42.5 x 200.5 mm
Weight	1.3 kg		1.6 kg
Operating environment	0° to 40°C		0° to 40°C
1performance with a real-world traffic blend, a typical rule-base, NAT and logging enabled and the most secure threat prevention 2 available in H2 2016

Software Specifications
Software Blade	NGTP
Firewall
Identity Awareness
IPSec VPN
Advanced Networking & Clustering
Mobile Access ¹
IPS
Application Control
URL Filtering
Antivirus
Anti-Spam & Email Security
Anti-Bot
NGTP = Next Generation Threat Prevention 1 SSL VPN Portal is not supported

Rackmount:

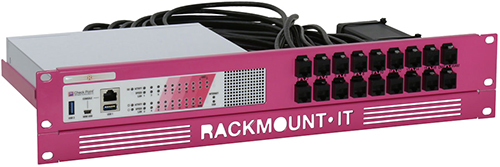

The RM-CP-T3 is a rack mount kit for the Check Point 770, 790, 1470 & 1490. The rack mount kit makes these Check Point models fit in a 19" rack. The RM-CP-T3 has all the network connections from the rear on the front panel. The unit is 1.3U high. The total height is 2U with the additional supplied front plate. The RM-CP-T3 model is delivered in RAL 4003 (pink). Other colours can be delivered on project basis.

Specifications
Color	RAL 4003 Check Point Pink (Heather Violet)
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	59 x 482 x 217mm
Number of connections brought to the front	18
Console port to the front	Yes
Cables	18x 0.5m cables
Couplers	18x RJ45 couplers
Supported Models	- Check Point 770 - Check Point 790 - Check Point 1470 - Check Point 1490
What's in the box	- 1x CP-Rack + RJ45 couplers - 1x Rackmount.IT front plate - Cables - Assembly materials - Installation guide
EAN	8718868918352
UPC	852754006353

Documentation:

Download the Check Point 1400 Appliance Datasheet (PDF).
