Check Point 1800 Next Generation Appliance
Branch Office Security Gateways

Check Point 1800 Security Appliance



Check Point Products
Check Point 1800 Appliance
USA: FREE Ground Shipping1800 Base Appliance with SandBlast subscription package for 1 year
#CPAP-SG1800-SNBT
List Price: $5,400.00
Our Price: $4,347.00

Click here to jump to more pricing!

Overview:


Check Point Quantum Spark security gateways are high performance, integrated devices offering firewall, VPN, antivirus, application visibility and control, URL filtering, email security and SandBlast ZeroDay Protection, all in compact form factors that are simple to configure and manage.

Full Protection for Small and Midsize Businesses

The Check Point Quantum Spark 1600 and 1800 security gateways deliver enterprise-grade security in simple, affordable, all-inone security solutions in a 1 Rack Unit (RU) form factor to protect small to mid-size business employees, networks and data from cyber-theft. High threat prevention throughput and high port capacity with 2.5 and 10 GbE network interfaces in the 1800 make these NGFWs ideal for larger branch and SMB networks.


Check Point 1800 Appliance


Protection from Every Threat

Easy to Deploy and Manage

All-in-One Solution


Features:



Comprehensive Protection

The 1800 series applianced provide comprehensive protection for any small office environment:

  • Next Generation Firewall
  • Site-to-Site VPN
  • Remote Access VPN
  • Application Control and Web Filtering
  • IoT Device Recognition
  • Intrusion Prevention
  • Antivirus
  • Anti-Bot
  • Anti-Spam
  • SandBlast Threat Emulation (sandboxing)
Check Point 1600 Security Appliance
R80 Software for SMB Appliances


R80 Software for SMB Appliances

R80 software for SMB increases performance and brings enterprise-grade security to small and medium size businesses. Centrally managed SMB gateways support:

  • Unified access policy: firewall, application control, URLF
  • Policy layers and sub-policies
  • Acceleration of Domain, Dynamic and Time objects
  • Multicore VPN and VPN acceleration

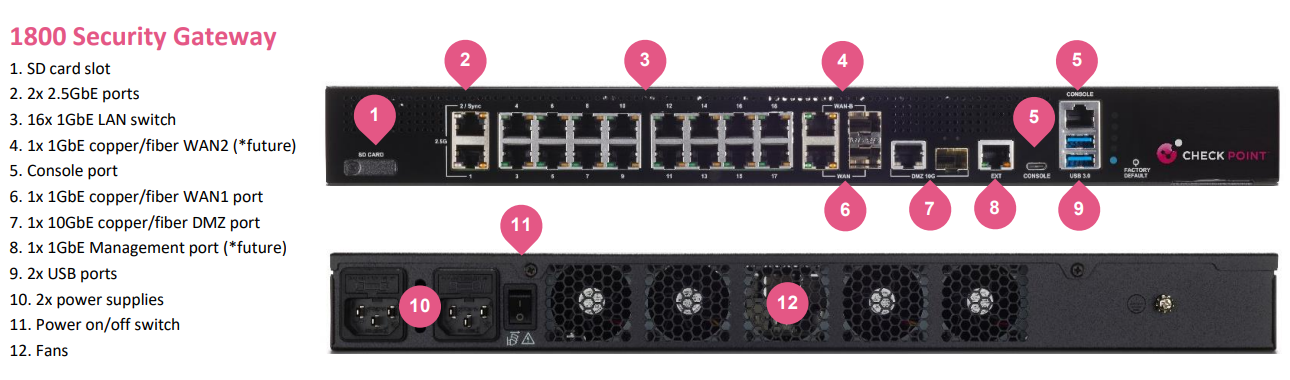

1/2.5/5/10 GbE Network Connectivity

The 1800 has 1GbE copper or fiber options for the WAN and DMZ. The 1800 has a 1GbE Management port, 2.5GbE options for the LAN and a 10GbE copper or fiber option for the DMZ.

1600 1800
LAN N 16x 1GbE copper 16x 1GbE copper plus
2x 2.5GbE copper
DMZ 1x 1GbE copper/fiber 1x 10GbE copper/fiber
WAN 1x 1GbE copper/fiber 2x 1GbE copper/fiber
MGMT 1x 1GbE copper
Wired, Wi-Fi and Wi-Fi with Embedded 3/4G/LTE
Cloud Management


Cloud Management

An intuitive web-based user interface, enables service providers to provision security efficiently for small and medium-size businesses. In addition a cloud-hosted Security Management Portal scales to manage over 10,000 Check Point Quantum Spark Gateways. SMBs can leave security to a service provider so they can focus on growing their own business.


Simple, Intuitive Monitoring and Reporting

The web interface shows logs, active computers, and hourly, daily, weekly and monthly reports. In network analysis find top applications and users consuming the most bandwidth. Security analysis shows users visiting high-risk sites and using high-risk applications. Also see any incidents or infected hosts found during the reporting period.

Simple, Intuitive Monitoring and Reporting
Check Point WatchTower Security Management App


Security Management App

The intuitive mobile app provides real-time monitoring of network events, alerts you when your network is at risk, enables you to quickly block security threats, and configure the security policy for multiple gateways.

  • Network security snapshot: view connected devices and any threats
  • Real-time security alerts: of attacks or unauthorized devices
  • On-the-spot threat mitigation: quickly block infected devices
  • Network statistic reports and charts: gain insights on network usage patterns
  • Manage multiple gateways: manage security in the palm of your hand

Specifications:

Check Point 1600 Security Appliance

Enterprise Testing Conditions
Threat Prevention (Mbps)1 2,000
Next Generation Firewall2 5,000
IPS Throughput (Mbps) 5,500
Firewall Throughput (Mbps) 7,500
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518 Byte UDP Packets (Mbps) 17,000
VPN AES-128 Throughput(Mbps) 4,000
Connections per Second 66,000
Concurennt Connections 2,400,000
Software
Security Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing OSPFv2, BGPv4 and 4++, RIP, IGMP
Mobile Access License (Users) 500 remote SNX or Mobile VPN client users
Hardware
WAN Port 2x 10/100/1000Base-T RJ-45 / 1000BaseF SFP ports (transceiver not included) *WAN2 support in future SW release
DMZ Port 1x 10GbE Base-T RJ-45 / 10GbE SFP+ (transceiver not included)
LAN Switch Ports 2x 2.5GbE Base-T RJ-45 plus 16x 10/100/1000Base-T RJ-45 ports
Management Ports 1x 10/100/1000Base-T RJ-45 port *MGMT support in future SW release
Console Ports 1x USB-C and 1x RJ-45 console port
USB Port 2x USB 3.0 ports
Storage 256 GB SSD and Micro-SD slot with 32 and 64 GB card options
eMMC 32 GB
MTBF 15.64 years @ 25ºC
Dimensions
Enclosure 1U
Dimensions (W x D x H) 430 x 300 x 44.2 mm (16.93 x 11.8 x 1.74 in.)
Weight 6.76 kg (14.9 lbs.)
Environment
Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input 110 – 240VAC, 50 – 60 Hz
Power Supply Rating two redundant 150W power supplies
Power Consumption (Max) 93.6W
Heat Dissipation 319.3
Certifications
Safety | Emissions | Environment UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, FCC: Part 15 Class B / RoHS, REACH, WEEE

1 Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot, SandBlast Zero-Day Protection with logging.
2 Includes Firewall, Application Control, IPS with logging.

Software Package Comparison:


 NGFW   NGTP   SNBT 
Security Appliance (wired, Wi-Fi or Wi-Fi with xDSL or embedded LTE)
Premium Support (24x7 response, software upgrades and more)
PRO Support option (proactive health monitoring service)
Firewall
VPN
Mobile Access (includes 100 concurrent users in the 1530, 1550, or 200 in the 1570, 1590)
Application Control
Intrusion Prevention System
URL Filtering
Antivirus and Anti-Bot
Treat Emulation (sandboxing)

Compare:

Documentation:

Download the Check Point 1800 Appliance Datasheet (PDF).

Pricing Notes:

Check Point Products
Check Point 1800 Appliance
USA: FREE Ground Shipping1800 Base Appliance with SandBlast subscription package for 1 year
#CPAP-SG1800-SNBT
List Price: $5,400.00
Our Price: $4,347.00
SNBT and Direct Premium support
USA: FREE Ground Shipping1800 appliance with SNBT subscription package and Direct Premium support for 1 years
#CPAP-SG1800-SNBT-SS-PREM-1Y
List Price: $6,318.00
Our Price: $5,085.99
USA: FREE Ground Shipping1800 appliance with SNBT subscription package and Direct Premium support for 3 years
#CPAP-SG1800-SNBT-SS-PREM-3Y
List Price: $12,474.00
Our Price: $10,041.57
USA: FREE Ground Shipping1800 appliance with SNBT subscription package and Direct Premium support for 5 years
#CPAP-SG1800-SNBT-SS-PREM-5Y
List Price: $18,630.00
Our Price: $14,997.15
SNBT and Direct Premium Pro support
USA: FREE Ground Shipping1800 appliance with SNBT subscription package and Direct Premium Pro support for 1 years
#CPAP-SG1800-SNBT-SS-PREMPRO-1Y
List Price: $6,507.00
Our Price: $5,238.14
USA: FREE Ground Shipping1800 appliance with SNBT subscription package and Direct Premium Pro support for 3 years
#CPAP-SG1800-SNBT-SS-PREMPRO-3Y
List Price: $13,041.00
Our Price: $10,498.01
USA: FREE Ground Shipping1800 appliance with SNBT subscription package and Direct Premium Pro support for 5 years
#CPAP-SG1800-SNBT-SS-PREMPRO-5Y
List Price: $19,575.00
Our Price: $15,757.88
