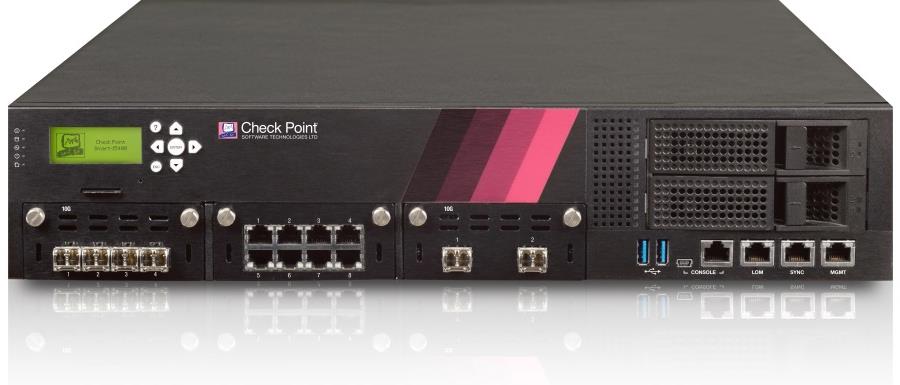

Check Point 15400 Security Appliance
Large enterprise security, performance and reliability

Overview:

Today’s enterprise networks and data centers need comprehensive security protections in a scalable, easy to manage configuration. The Check Point 15000 security appliances are designed for high performance, reliability and uncompromising security to combat even the most sophisticated threats, making them ideal for enterprise and data center environments.

Benefits

The most advanced threat prevention security

• Comprehensive protections including firewall, IPS, Application Control, Anti-Bot, AntiVirus, URL Filtering and the award-winning sandboxing technology in Check Point SandBlast
• Next Generation Threat Prevention package provides uncompromising protection against known threats
• SandBlast Threat Prevention provides the most advanced protections against unknown threats, vulnerabilities and zero-day attacks

Complete protection without compromising performance

• Hardware and software optimized to deliver full advanced threat prevention security, including inspecting SSL encrypted traffic
• Up to 2.2 Gbps of real-world threat prevention throughput
• Up to 28 Gbps of real-world firewall throughput

Modular, expandable chassis design

• Redundant components such as power supplies, fans and hard drives eliminates downtime
• Centralized control with Lights-Out-Management (LOM) for enhanced serviceability
• High performance package options optimize platform performance
• Flexible I/O options with a 40 Gigabit Enternet (GbE) option

Key Features:

Check Point 15000 Appliances offer a complete and consolidated security solution available in two complete packages:

• Next Generation Threat Prevention (NGTP): prevent sophisticated cyber threats with IPS, Application Control, Antivirus, Anti-Bot, URL Filtering and Email Security
• SandBlast Threat Prevention (NGTX): advanced next-gen zero-day threat prevention, NGTP with Threat Emulation and Threat Extraction

Prevent unknown threats

The 15000 appliances protect organizations from both known and unknown threats with Antivirus, Anti-Bot, SandBlast Threat Emulation (sandboxing), and SandBlast Threat Extraction technologies.

As part of the Check Point SandBlast Zero-Day Protection solution, the cloud-based Threat Emulation engine detects malware at the exploit phase, even before hackers can apply evasion techniques attempting to bypass the sandbox. Files are quickly quarantined and inspected, running in a virtual sandbox to discover malicious behavior before it enters your network. This innovative solution combines cloud-based CPU-level inspection and OS-level sandboxing to prevent infection from the most dangerous exploits, and zero-day and targeted attacks.

Furthermore, SandBlast Threat Extraction removes exploitable content, including active content and embedded objects, reconstructs files to eliminate potential threats, and promptly delivers sanitized content to users to maintain business flow.

Inclusive high-performance package

Customers with high connection capacity requirements can purchase the affordable high-Performance package. This includes the appliance plus one 4x 10Gb SFP+ interface cards, transceivers and additional memory for high connection capacity.

A reliable serviceable platform

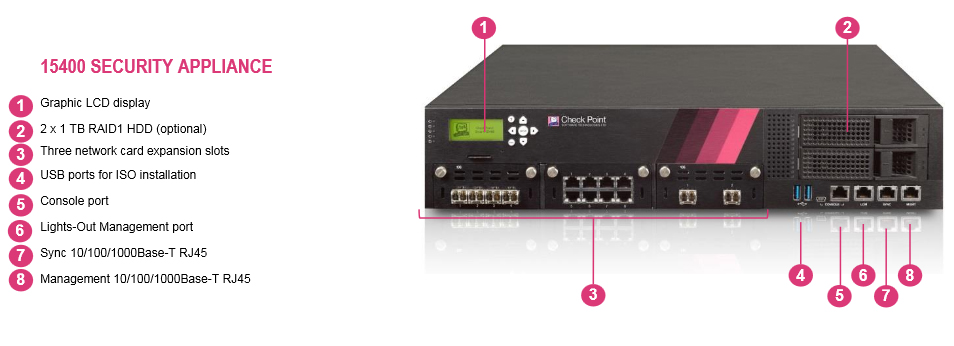

The Check Point 15000 appliance delivers business continuity and serviceability through features such as hot swappable redundant power supplies, hot-swappable redundant hard disk drives (RAID), redundant fans and an advanced LOM card for out-of-band management. Combined together, these features ensure a greater degree of business continuity and serviceability when these appliances are deployed in the customer’s networks.

Remote management and monitoring

A Lights-Out-Management (LOM) card provides out-of-band remote management to remotely diagnose, start, restart and manage the appliance from a remote location. Administrators can also use the LOM web interface to remotely install an OS image from an ISO file.

40GbE Connectivity

High speed connections are essential in modern data center environments, especially those with high-density virtualized servers. If you’re ready to move from 10 to 40 GbE, so are the 15000 Appliances. The Check Point 15000 Appliances let you connect your 10 GbE server uplinks to your 40 GbE core network with up to 4x 40 GbE ports.

Technical Specifications:

Appliance	15400	15600
Performance
SecurityPower	2600	3850
Firewall Throughput (Gbps)
Raw	58	76
Production1	23	28
VPN AES-128 Throughput (Gbps)	10.8	15.8
NGTP Throughput (Gbps)
Production1	1.5	2.2
Concurrent Connections (M)2	2.5/7.5	5/10
Connections per Second (K)	145	160
Virtual Systems
VS Supported (Default/Max)	25/250	150/250
Hardware Specifications (Default/Max)
10/100/1000Base-T Ports	10/26	10/26
1000Base-F SFP Ports	0/12	0/12
10GBase-F-SFP+ Ports	2/12	2/12
40GBase-F SFP+ Ports	0/4	0/4
Memory	8/24	16/32
Storage	1x1TB/2x1TB	2x1TB
I/O Expansion Slots	3	3
Lights-Out-Management	Included	Included
Dimensions
Enclosure	2U	2U
Dimensions (standard wxdxh)	17.4 x 20.84 x 3.46 in.
Dimensions (metric wxdxh)	442 x 529 x 88 mm
Weight	14.3 kg (31.5 lbs.)
Environment
Operating Environment	0°C - 40°C at 5 - 95% relative humidity
Non-Operating Environment	(-20)°C - 70°C at 5 - 95% relative humidity
Power
Dual, Hot-Swap Power Supplies	Included
Power Input	90 - 264VAC (47-63HZ)
Single Power Supply Rating	600W
Power Consumption (Max)	297W
Certifications
Safety	UL60950-1, CB IEC60950-1, CE LVD EN60950-1/TUV
Emissions	CE, FCC, VCCI, RCM/C-Tick
Environmental	RoHS II, *REACH, *ISO14001
1 assumes maximum production throughput with real-world traffic blend, a typical rule-base size, NAT and logging enabled and the most secure threat prevention protection 2 performance measured with default/maximum memory

Software Specifications

Software Blade	NGTP	NGTX
Firewall
Identity Awareness
IPSec VPN
Advanced Networking & Clustering
Mobile Access 1
IPS
Application Control
URL Filtering
Antivirus
Anti-Bot
Anti-Spam & Email Security
Threat Extraction	*
Threat Emulation	*
DLP	*	*
Management Blades
Network Policy Management
Logging and Status
SmartEvent	*	*
SmartWorkflow	*	*
Monitoring	*	*
Management Portal	*	*
User Directory	*	*
SmartProvisioning	*	*
SmartReporter	*	*
Endpoint Policy Management	*	*
Compliance	*	*
NGTP  = Next Generation Threat Prevention; NGTX  = SandBlast Threat Prevention; - Included * - Optional 1 Five users are included in default package
