Check Point 1600 Next Generation Appliance
Branch Office Security Gateways
Our Price: $3,300.50
Check Point Quantum Spark security gateways are high performance, integrated devices offering firewall, VPN, antivirus, application visibility and control, URL filtering, email security and SandBlast ZeroDay Protection, all in compact form factors that are simple to configure and manage.

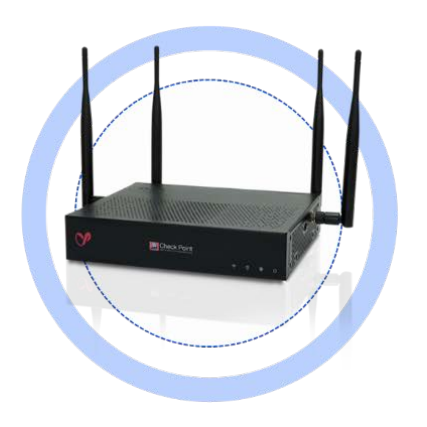

Full Protection for Small and Midsize Businesses
The Check Point Quantum Spark 1600 and 1800 security gateways deliver enterprise-grade security in simple, affordable, all-inone security solutions in a 1 Rack Unit (RU) form factor to protect small to mid-size business employees, networks and data from cyber-theft. High threat prevention throughput and high port capacity with 2.5 and 10 GbE network interfaces in the 1800 make these NGFWs ideal for larger branch and SMB networks.
Protection from Every Threat
Easy to Deploy and Manage
The 1600 series applianced provide comprehensive protection for any small office environment:
- Next Generation Firewall
- Site-to-Site VPN
- Remote Access VPN
- Application Control and Web Filtering
- IoT Device Recognition
- Intrusion Prevention
- SandBlast Threat Emulation (sandboxing)
R80 Software for SMB Appliances
R80 software for SMB increases performance and brings enterprise-grade security to small and medium size businesses. Centrally managed SMB gateways support:
- Unified access policy: firewall, application control, URLF
- Policy layers and sub-policies
- Acceleration of Domain, Dynamic and Time objects
- Multicore VPN and VPN acceleration

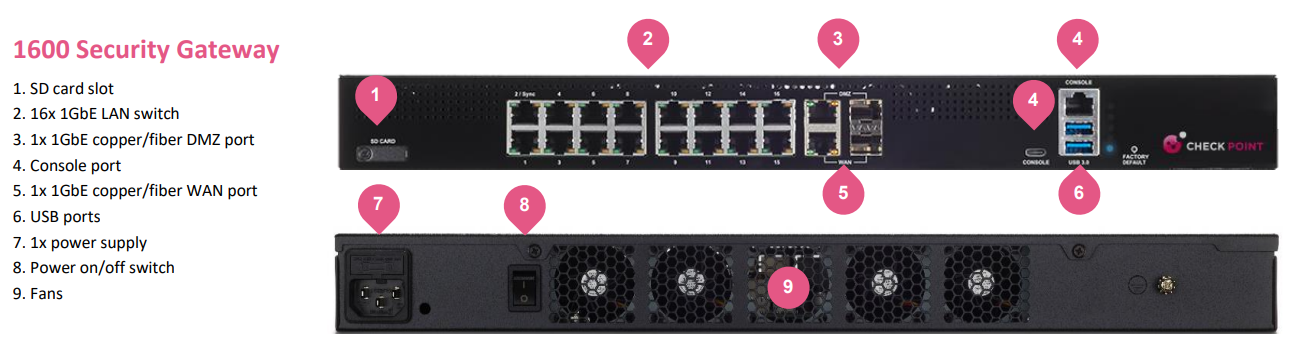

1/2.5/5/10 GbE Network Connectivity
The 1600 has 1GbE copper or fiber options for the WAN and DMZ. The 1800 has a 1GbE Management port, 2.5GbE options for the LAN and a 10GbE copper or fiber option for the DMZ.
|LAN||N 16x 1GbE copper||16x 1GbE copper plus
2x 2.5GbE copper
|DMZ||1x 1GbE copper/fiber||1x 10GbE copper/fiber|
|WAN||1x 1GbE copper/fiber||2x 1GbE copper/fiber|
|MGMT||1x 1GbE copper|
An intuitive web-based user interface, enables service providers to provision security efficiently for small and medium-size businesses. In addition a cloud-hosted Security Management Portal scales to manage over 10,000 Check Point Quantum Spark Gateways. SMBs can leave security to a service provider so they can focus on growing their own business.
Simple, Intuitive Monitoring and Reporting
The web interface shows logs, active computers, and hourly, daily, weekly and monthly reports. In network analysis find top applications and users consuming the most bandwidth. Security analysis shows users visiting high-risk sites and using high-risk applications. Also see any incidents or infected hosts found during the reporting period.
Security Management App
The intuitive mobile app provides real-time monitoring of network events, alerts you when your network is at risk, enables you to quickly block security threats, and configure the security policy for multiple gateways.
- Network security snapshot: view connected devices and any threats
- Real-time security alerts: of attacks or unauthorized devices
- On-the-spot threat mitigation: quickly block infected devices
- Network statistic reports and charts: gain insights on network usage patterns
- Manage multiple gateways: manage security in the palm of your hand
|Enterprise Testing Conditions|
|Threat Prevention (Mbps)1||1,500|
|Next Generation Firewall2||3,200|
|IPS Throughput (Mbps)||3,500|
|Firewall Throughput (Mbps)||4,800|
|RFC 3511, 2544, 2647, 1242 Performance (LAB)|
|Firewall 1518 Byte UDP Packets (Mbps)||8,000|
|VPN AES-128 Throughput(Mbps)||3,200|
|Connections per Second||55,000|
|Security||Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)|
|Unicast, Multicast Routing||OSPFv2, BGPv4 and 4++, RIP, IGMP|
|Mobile Access License (Users)||500 remote SNX or Mobile VPN client users|
|WAN Port||1x 10/100/1000Base-T RJ-45 / 1000BaseF SFP port (transceiver not included)|
|DMZ Port||1x 10/100/1000Base-T RJ-45 / 1000BaseF SFP port (transceiver not included)|
|LAN Switch Ports||16x 10/100/1000Base-T RJ-45 ports|
|Console Ports||1x USB-C and 1x RJ-45 console port|
|USB Port||2x USB 3.0 ports|
|Storage||Micro-SD card slot with 32 and 64 GB card options|
|MTBF||22.26 years @ 25ºC|
|Dimensions (W x D x H)||430 x 300 x 44.2 mm (16.93 x 11.8 x 1.74 in.)|
|Weight||6.17 kg (13.6 lbs.)|
|Operating / Storage||0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)|
|AC Input||110 – 240VAC, 50 – 60 Hz|
|Power Supply Rating||single 150W power supply|
|Power Consumption (Max)||71.6W|
|Safety | Emissions | Environment||UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, FCC: Part 15 Class B / RoHS, REACH, WEEE|
1 Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot, SandBlast Zero-Day Protection with logging.
2 Includes Firewall, Application Control, IPS with logging.
Download the Check Point 1600 Appliance Datasheet (PDF).
