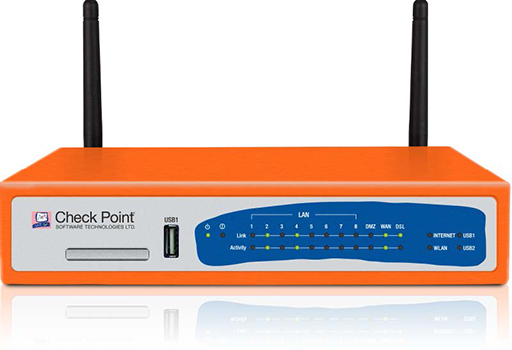

Check Point 680 Security Appliance
Big security for small offices

Overview:

Your Challenge

As small businesses rely more and more on the Internet to conduct business, they also face more threats to their network, computers and data. With a lack of IT security knowledge and resources, maintaining a high level of security to combat these threats is a challenge. Today’s small businesses need a simple, yet comprehensive security solution to secure their assets and minimize the risks of a data breach.

Our Solution

The Check Point 600 Appliances deliver enterprise-grade security in a simple, affordable, all-in-one security solution to protect small business employees, networks and data from cyber-theft.

This one device offers integrated, multi-layered security; Firewall, VPN, IPS, Antivirus, Application Visibility & Control, URL Filtering and Email Security—all in a quiet, compact desktop form-factor. The 600 Appliance runs the same industry-leading security that is used to secure Fortune 100 companies.

The Check Point 600 Appliance family includes a simple, yet comprehensive webbased local management interface for setting and monitoring security. With the first time configuration wizard and pre-defined security policies; setup is done in minutes, even by non-IT professionals. Ongoing monitoring and maintenance is simple and intuitive using comprehensive monitoring tools and periodic reports. Out-of-the-box security policies are based on security Industry best practices.

To simplify your management further, choose the Cloud-based Managed Security option. This innovative service offers small businesses the choice of a full Managed Security service for a small monthly fee, freeing them to focus on their core business and leaving Security Management and Network Protection to security professionals.

All 600 Appliances come standard with 10 x 1 Gbps Ethernet ports. For added flexibility and convenience, the wireless version of the 600 Appliance includes a Wi-Fi access point (802.11b/g/n) that supports WEP, WPA and WPA2 authentication as well as secured guest access capabilities. The optional integrated ADSL modem eliminates the need for a separate external ADSL modem. Additionally, the included USB ports and PCI Express card slot allows an administrator to plug in a compatible third party 3G modem, providing an additional WAN connection for a redundant Internet link for maximum reliability. With a maximum of 37 SecurityPower Units and 1.5 Gbps of firewall throughput, the 600 Appliance has the performance that small

Features

• Enterprise leading security
• Highest ranked Next Generation firewall
• Simple and intuitive local management for small businesses
• Cloud-based Security Services management option
• Multiple internet access options including Ethernet, ADSL and 3G
• Integrated wireless security with guest access

Benefits

• Protect your employees and your data
• Setup security for your business in minutes with easy & intuitive web-based management
• Trust the experts with the cloud-based security management option
• One stop shop for connectivity and security
• Create multiple wireless access networks, enabling guest access to the Internet while limiting access to the corporate network

Key Features:

Award-winning Firewall and Threat Prevention

The Check Point 600 Appliances provide an easy-to-deploy, all-in-one threat prevention solution to secure small businesses from modern cyber-threats. With the industry highest ranked firewall, next-generation firewall, IPS and threat prevention security technologies, small businesses can get the same security used by all Fortune 100 companies at SMB prices.

Comprehensive Security

Leveraging the proven and flexible Software Blade Architecture, the 600 Appliances deliver multi-layered security to the small-office environment including:

• Firewall
• VPN
• Advanced Networking & Clustering
• Identity Awareness & User Awareness

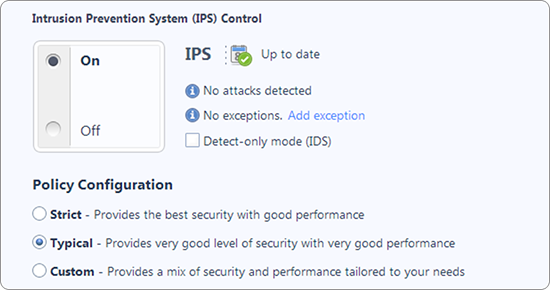

• IPS
• Application Control
• URL Filtering
• Antivirus
• Anti-Spam and Email Security

Flexible Network Connections with High Capacity

All 600 Appliances come standard with 10 x 1Gbps Ethernet ports. For added flexibility and convenience, the wireless version of the 600 Appliance includes a WiFi access point (802.11b/g/n) that supports WEP, WPA and WPA2 authentication as well as secured guest access capabilities. The optional integrated ADSL modem eliminates the need for a separate external ADSL modem. Additionally, the included USB and PCI Express card slots allow an administrator to plug in a compatible third party 3G modem, providing an additional WAN connectivity for a redundant Internet link for maximum reliability.

Simple Configuration and Deployment

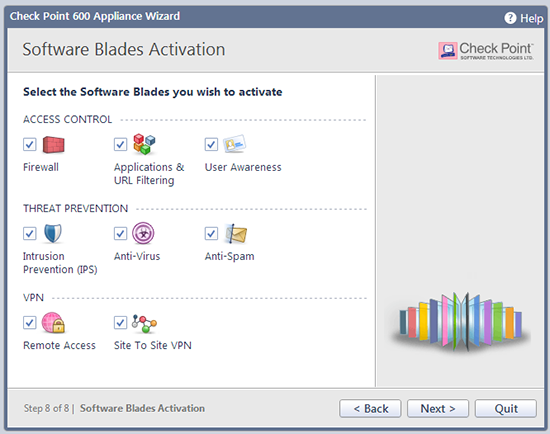

The Check Point 600 Appliances can be up-and-ready in minutes, offering hassle-free deployment to branch offices with minimal IT support staff. Even non-technical staff can easily perform initial setup and configuration via a simple start-up wizard, without the need of corporate IT staff.

Simplified Management

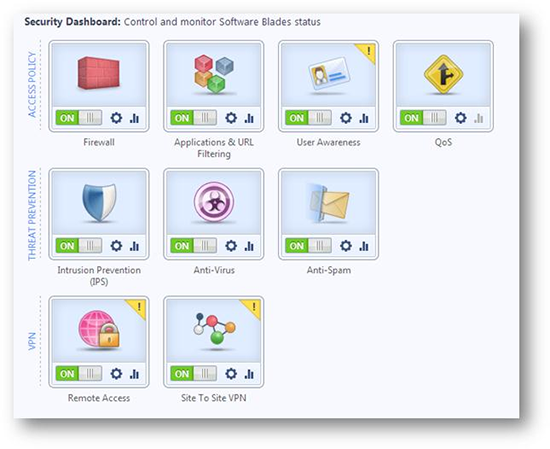

Secure an office in minutes with a simple web-based local management interface. The setup wizard enables a pre-set security policy, customize the device configuration and security policy with the web-based management interface, monitor the device and security with easy-to-understand logs and reports.

Cloud-based Security Management

Simplify your security management with Check Point Cloud-Managed Security Service. The Check Point Cloud-based Security Service offers you a proven and cost-effective security in a simple All-in-One solution by letting us help you manage your security. With Check Point's history of security industry technology leadership combined with our security experts available 24x7 ensure your network will be monitored and protected.

Technical Specifications:

	620	640	680
Recommended Users
With VPN and Firewall Only	Up to 20	Up to 50	Up to 100
With Next Generation Threat Prevention Enabled	Up to 10	Up to 25	Up to 50
Performance
Firewall (Gbps)	0.75	1.0	1.5
VPN (Mbps)	140	175	220
IPS (Mbps)1	50	67	100
Antivirus (Mbps)	50	67	100
Hardware

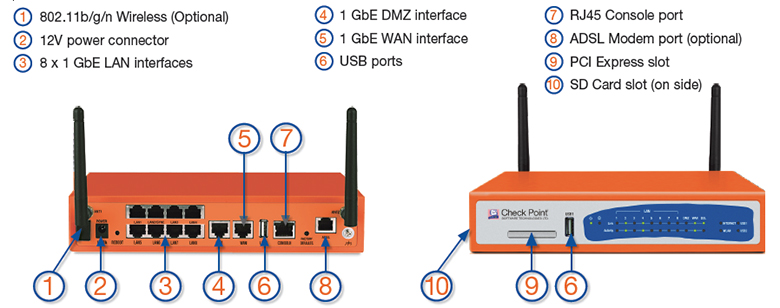

1GbE LAN Interface	8
1GbE WAN Interface	1
1GbE DMZ Interface	1
ADSL (Annex A or B)	Optional
802.11 b/g/n Wireless	Optional
USB	2
PCI Express Slot	1
SD Card Slot	1
3G Modem Support	Yes
Dimensions
Enclosure	Desktop
Metric (W x H x D)	22 x 4.4 x 15.24 cm
Imperial (W x H x D)	8.75 x 1.75 x 6 in
Weight	1.2 kg (2.65 lbs)
Environment
Operating Environment	0ºC ~ 40ºC (5~95%, non-condensing)
Power Requirements
AC Input	100 - 240 VAC
Frequency	50 - 60 Hz
Power Supply Rating	12/2A DC 24W (Wired Models) 12/2.5A DC 24W (ADSL & Wireless Models)
Maximum Power Consumption	16.68 W
Maximum Thermal Output	56.9 BTU
Certifications
Safety	UL/c-UL 60950-1_2nd_2007(US+CA) IEC 60950-1_2nd_2005-CB
Emissions	EMC: EN55022+24_2007-ITE FCC: FCC P15B+ICES-003-ITE

¹ Strict IPS Profile

Software Blade	NGFW	NGTP
Firewall
Identity Awareness
IPSec VPN
Advanced Networking & Clustering
Mobile Access1
IPS	*
Application Control	*
URL Filtering	*
Antivirus	*
Anti-Spam & Email Security	*
Anti-Bot	*
NGFW  = Next Generation Firewall;  NGTP = Next Generation Threat Prevention - Included * - Optional 1 SSL VPN Portal is not supported

Documentation:

Download the Check Point 600 Appliance Datasheet (PDF).

Download the Check Point Appliance Comparison Chart (PDF).

Download the Check Point New Appliances Brochure (PDF).
