Overview:
The Small Business Challenge
Growing both quickly and safely can be difficult for small businesses. As a small business, you worry about survival and as you grow your business in size, you worry about dozens of issues; such as continuing to grow your business, protecting your customers and beating your competition to market. You want a secure network, but how many people can you justify in your IT department? Security does not have to mean a large IT staff.
Our Solution
The Check Point 700 Appliance family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions to protect small business employees, networks and data from cyber-theft. The 700 Security Appliances offer integrated, multi-layered security in a quiet, compact desktop form factor.
The Most Advanced Cybersecurity
Protect your business against ransomware, viruses, spam and dangerous applications and websites
Unparalleled Visibility and Control

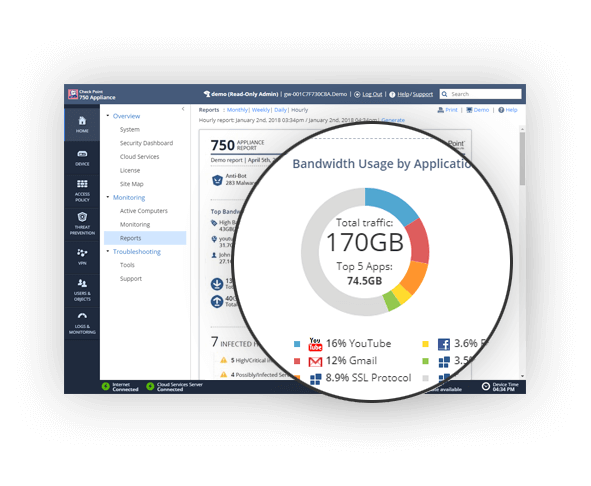

Have visibility and control on Internet usage with real-time reports
Absolute Privacy
Securely and privately access your data from anywhere with VPN

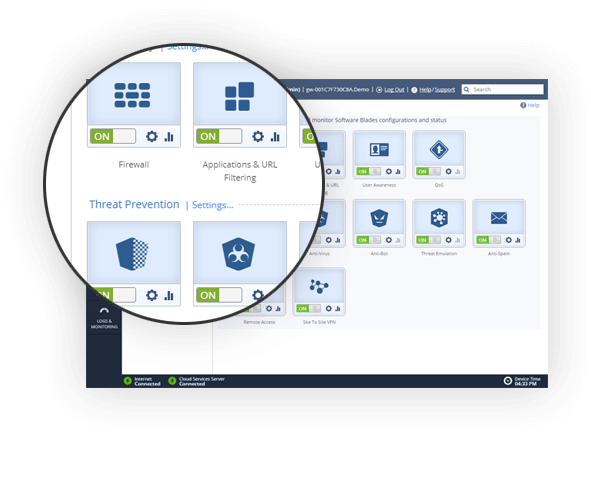

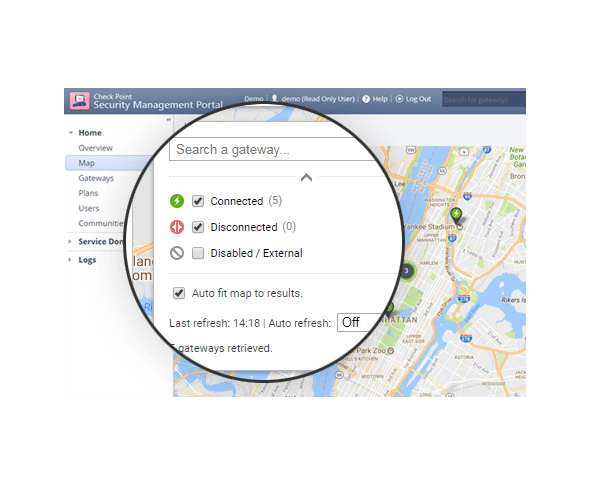

Setup can be done in minutes using pre-defined security policies and our step-by-step configuration wizard. Check Point 700 Appliances are conveniently manageable both locally via a Web interface and centrally by means of the Check Point Security Management Portal (SMP). Available in two appliances, the 730/750 and the 770/790, these appliances come standard with eight (8) 1-Gigabit or eighteen (18) Ethernet ports respectively. Connect securely from any device directly or through secure authenticated Wi-Fi.

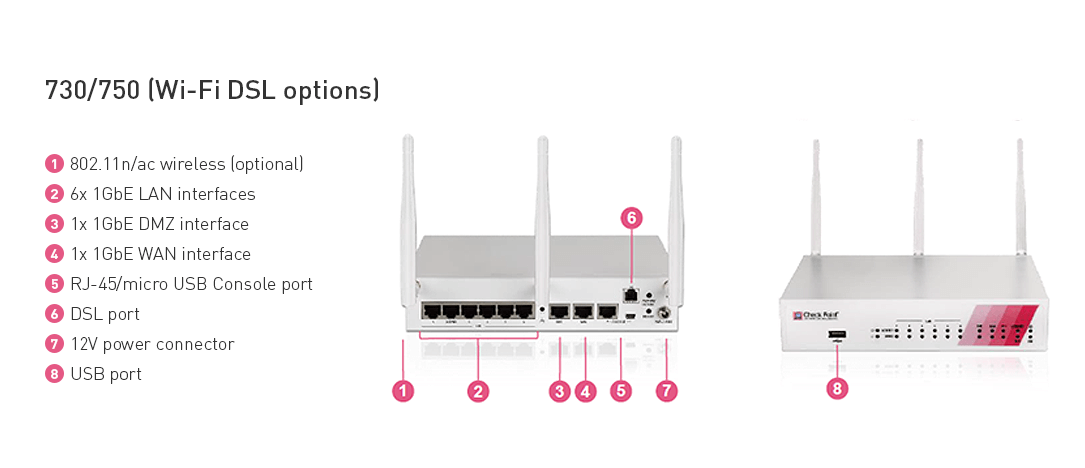

730/750 Model Specifications:
|
730 |
750 |
| Firewall 1518 Byte UDP Packets (Mbps) |
2,000 |
2,500 |
| IPS Throughput (Mbps) |
325 |
575 |
| VPN AES-128 Throughput (Mbps) |
275 |
500 |
| Connections per Second |
20,000 |
27,000 |
| Concurrent Connections |
500,000 |
500,000 |
| SecurityPower |
75 |
141 |
| Firewall Throughput (Mbps) |
900 |
1,100 |
| Threat Prevention (Mbps) |
100 |
200 |
| Security |
Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing) |
| Unicast, Multicast Routing |
OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP |
| Mobile Access User License |
100 in default package, 150 maximum |
100 in default package, 150 maximum |
| WAN |
1x 10/100/1000Base-T RJ-45 port |
| DMZ |
1x 10/100/1000Base-T RJ-45 port |
| LAN Switch |
6x 10/100/1000Base-T RJ-45 ports |
| Wi-Fi (optional) |
802.11 b/g/n/ac MIMO 3x3 |
| Radio Band (association rate) |
1 radio band: 2.4Ghz (max 450 Mbps) or 5Ghz (max 1300 Mbps) |
| Console Port |
1x RJ-45, 1x Mini USB |
| USB Port |
1x USB 3.0 |
| SD Card Slot |
Micro SDHC slot |
| 3G/4G Modem Support |
Yes |
| DSL (optional) |
VDSL: G.993.1 (VDSL), G.993.2 (VDSL2), G.993.5 (VDSL2 Vectoring), G.998.4 (G.INP) VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a ADSL: Annex A (POTS), Annex B (ISDN), G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+), Annex M (ADSL2/2+) ,Annex L Reach-extended (ADSL2) Dying Gasp, DSL Forum TR-067, TR-100, TR-114 Conformity |
| Enclosure |
Desktop |
| Dimensions WxHxD |
210 x 42.5 x 155 mm, 8.3 x 1.7 x 6.1 in. |
| Weight |
1.3 kg (2.8 lbs.) |
| Operating / Storage |
0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing) |
| AC Input |
110 – 240V, 50 – 60 Hz |
| Power Supply Rating |
12V/3.33A 40W desktop adaptor |
| Power Consumption (Max) |
25W (non-Wi-Fi), 30W (Wi-Fi) |
| Heat Dissipation |
85.3 BTU/hr (non-Wi-Fi), 102.4 BTU/hr (Wi-Fi) |
| Safety/Emissions/Environment |
UL/c-UL, IEC 60950 CB / EMC: EN55022 Class B, FCC: Part 15 Class B / RoHS, REACH, WEEE |
Notes:
1 performance measured with a real-world SMB HTTP traffic blend, a typical rule-base, NAT, logging and the most secure threat prevention

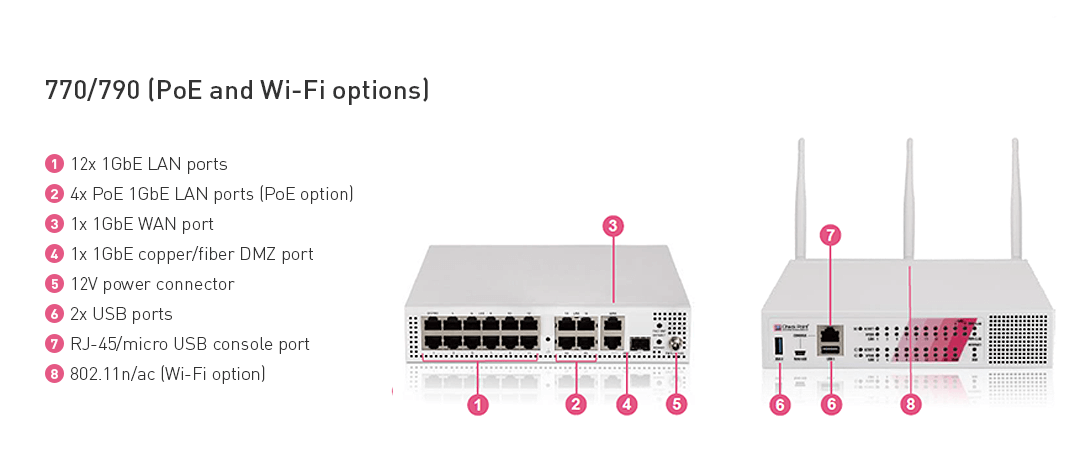

770/790 Model Specifications:
|
770 |
790 |
| Firewall 1518 Byte UDP Packets (Mbps) |
3,200 |
4,000 |
| IPS Throughput (Mbps) |
700 |
800 |
| VPN AES-128 Throughput (Mbps) |
500 |
1,000 |
| Connections per Second |
30,000 |
40,000 |
| Concurrent Connections |
500,000 |
500,000 |
| SecurityPower |
194 |
233 |
| Firewall Throughput (Mbps) |
1,600 |
1,800 |
| Threat Prevention (Mbps) |
270 |
330 |
| Security |
Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing) |
| Unicast, Multicast Routing |
OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP |
| Mobile Access User License |
200 in default package, 300 maximum |
200 in default package, 300 maximum |
| WAN |
1x 10/100/1000Base-T RJ-45 port |
| DMZ |
1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP (transceiver not included) port |
| LAN Switch |
16x 10/100/1000Base-T RJ-45 ports (total) |
| PoE Ports (optional) |
4x 10/100/1000Base-T RJ-45 out of the 16 LAN ports |
| Wi-Fi (optional) |
802.11 b/g/n and 802.11 n/ac MIMO 3x3 |
| Radio Band (association rate) |
2 concurrent: 2.4Ghz (max 450 Mbps) and 5Ghz (max 1300 Mbps) |
| Console Port |
1x RJ-45, 1x Mini USB |
| USB Port |
2x USB 3.0 |
| SD Card Slot |
Micro SDHC slot |
| 3G/4G Modem Support |
Yes |
| Enclosure |
Desktop |
| Dimensions WxHxD |
210 x 42.5 x 200.5 mm, 8.3 x 1.7 x 7.9 in. |
| Weight |
1.6 kg (3.6 lbs.) |
| Operating / Storage |
0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing) |
| AC Input |
110 – 240V, 50 – 60 Hz |
| Power Supply Rating |
12V/5.4A 65W, 12V/12.5A 150W (PoE option) |
| Total Available PoE Power |
Max load on each 4x PoE ports: 15.4 W (802.3af), or use only 2x PoE ports with max load of 31W (802.3at) each |
| Power Consumption (Max) |
55W (non-Wi-Fi), 60W (Wi-Fi), 130W (PoE) |
| Heat Dissipation |
187.7 BTU/hr (non-Wi-Fi), 204.7 BTU/hr (Wi-Fi), 443.6 BTU/hr (PoE) |
| Safety/Emissions/Environment |
UL/c-UL, IEC 60950 CB / EMC: EN55022 Class B, FCC: Part 15 Class B / RoHS, REACH, WEEE |
Notes:
1 performance measured with a real-world SMB HTTP traffic blend, a typical rule-base, NAT, logging and the most secure threat prevention
