Overview:
Protecting midsize businesses with up to 5000 employees, requires a scalable security solution that expands protections against GenV cyber attacks while the business grows. The Quantum Security Gateway 6000 series quickly expands SandBlast Network threat prevention performance starting with up to 7.6 Gbps with hyperscale expansion up to 380 Gbps. Leveraging Infinity unified management, businesses can reduce security operations up to 80%.
Check Point Quantum 6600 Next Generation Firewalls enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure, scaling security almost infinitely according to their changing business needs. It also dramatically accelerates the efficiency of their security operations. This enables enterprises to prevent and block even the most advanced attacks, before they can disrupt business.
Quantum 6000 Security Gateways: Best Security, Ultimate Hardware
With zero-day prevention out-of-the-box, the Quantum 6000 family protects against GenV attacks with up to 7.6 Gbps threat prevention. With Maestro Hyperscale, threat prevention can be expanded up to 380 Gbps in just a few minutes. Cloud-level resiliency is provided with 100% SSDs and redundant power supplies. 2 x 40 GbE connectivity is provided for rapidly growing networks. Unified management provides flexibility through both the on-premise SmartConsole or SmartCloud security cloud services.
Always Protected Against GenV Attacks
Highest caliber prevention with unified security
Security at Hyperscale
On-demand expansion with Hyperscalability
Efficient Operations
Cut operation management time by up to 80%
Introducing New Quantum Security Gateways
All Quantum Security Gateways come with Check Point’s award-winning SandBlast Network right out of the box. Check Point protects enterprises from the 5th Generation of sophisticated multi-vector cyber attacks versus 3rd Generation of protection provided by other firewalls.

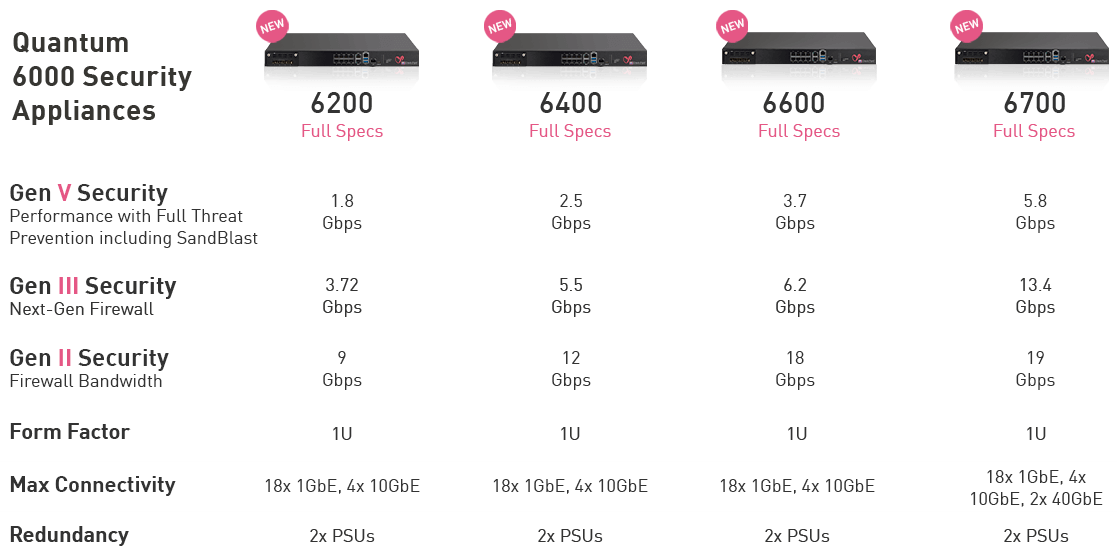

Specifications:
Enterprise Testing Conditions |
Threat Prevention (Gbps)1 |
3.7 |
NGFW2 (Gbps) |
6.2 |
IPS Throughput (Gbps) |
10.14 |
Firewall Throughput (Gbps) |
18 |
RFC 3511, 2544, 2647, 1242 Performance (LAB) |
Firewall 1518B UDP (Gbps) |
32 |
VPN AES-128 (Gbps) |
4.9 |
Connections per Second |
116,000 |
Concurennt Connections |
2/4/8M |
Additional Features |
Highlights |
- 1x CPUs, 6x physical cores
- 1x 240 GB SSD storage
- 1 AC power supply (2x in Plus)
- 8, 16 and 32 GB memory options
- Lights-Out-Management (included in Plus)
- Virtual Systems (Base/Plus/max mem): 10/20/20
|

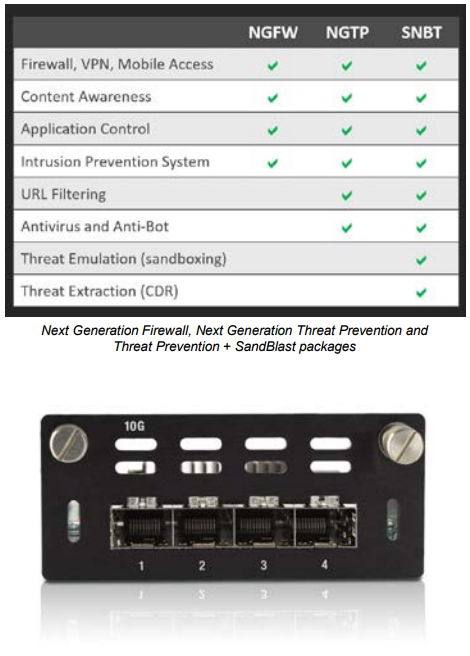

Network Expansion Slot Options (1 of 1 slots open) |
- 8x 10/100/1000Base-T RJ45 port card, up to 18 ports
- 4x 1000Base-F SFP port card, up to 4 ports
- 4x 10GBase-F SFP+ port card, up to 4 ports
|
Content Security |
First Time Prevention Capabilities |
- CPU-level, OS-level and static file analysis
- File disarm and reconstruction via Threat Extraction
- Average emulation time for unknown files that require full sandbox evaluation is under 100 seconds
- Maximal file size for Emulation is 100 MB
- Emulation OS Support: Windows XP, 7, 8.1, 10
|
Applications |
- Use 8,000+ pre-defined or customize your own applications
- Accept, prevent, schedule, and apply traffic-shaping
|
Data Loss Prevention |
- Classify 700+ pre-defined data types
- End user and data owner incident handling
|
Dynamic User-based Policy |
- Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid, Terminal Servers and with 3rd parties via a Web API
- Enforce consistent policy for local and remote users on Windows, macOS, Linux, Android and Apple iOS platforms
|
Network |
Network Connectivity |
- Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems)
- 802.3ad passive and active link aggregation
- Layer 2 (transparent) and Layer 3 (routing) mode
|
High Availability |
- Active/Active L2, Active/Passive L2 and L3
- Session failover for routing change, device and link failure
- ClusterXL or VRRP
|
IPv6 |
- NAT66, NAT64, NAT46
- CoreXL, SecureXL, HA with VRRPv3
|
Unicast and Multicast Routing (see SK98226) |
- OSPFv2 and v3, BGP, RIP
- Static routes, Multicast routes
- Policy-based routing
- PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3
|
Power Requirements |
Single Power Supply rating |
300W |
AC power input |
100 to 240V (50-60Hz) |
Power consumption max |
126W |
Maximum thermal output |
429.9 BTU/hr. |
Dimensions |
Enclosure |
1RU |
Dimensions (WxDxH) |
17.2 x 20 x 1.73 in.(438 x 508 x 44mm) |
Weight |
16.5/17.4 lbs. (7.5/7.9 kg) |
Environmental Conditions |
Operating |
0° to 40°C, humidity 95% |
Storage |
–20° to 70°C, humidity 95% |
Certifications |
Safety |
UL, CB, CE, TUV GS |
Emissions |
FCC, CE, VCCI, RCM/C-Tick |
Environmental |
RoHS, WEEE, REACH, ISO14001 |
1 Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot, SandBlast Zero-Day Protection
2 Includes Firewall, Application Control, IPS
