Overview:
Protecting large enterprises from GenV cyber attacks requires a scalable and unified security architecture. Check Point 7000 and 16000 Quantum Security Gateways with SandBlast Network go beyond the Next Generation Firewall with 60 security services that provide the best protection against GenV attacks. Based on Infinity, they include the ultimate hardware to deliver 15 Gbps of threat prevention performance, hyperscale expansion to 750 Gbps, accelerated SSL inspection, and cloud-level expansion.
Check Point Quantum 6900 Next Generation Firewalls enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure, scaling security almost infinitely according to their changing business needs. It also dramatically accelerates the efficiency of their security operations. This enables enterprises to prevent and block even the most advanced attacks, before they can disrupt business.

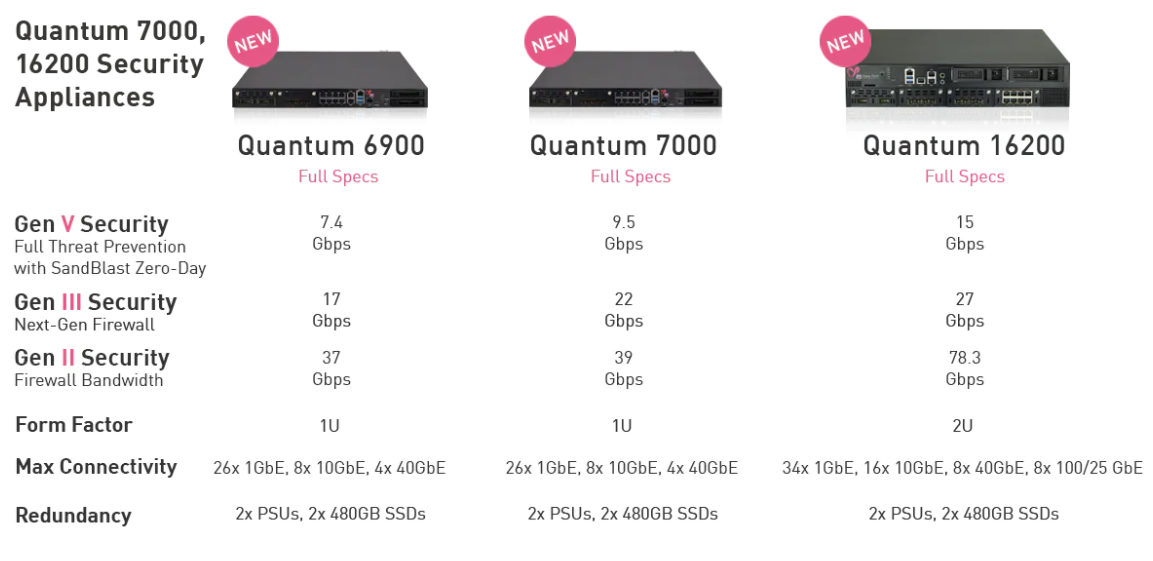

Quantum 6900, 7000, 16000 Security Gateways: Best Security, Ultimate Hardware
With powerful zero-day prevention out-of-the-box, the 6900, 7000 and 16000 deliver up to 15 Gbps of threat prevention performance, hyperscale expansion up to 750 Gbps, and the latest CPUs for accelerated SSL inspection. Cloud-level resiliency and expansion is provided through 100% SSDs, 2 power supplies for redundancy, and up to 8 x 100 GbE connectivity.
Always Protected Against GenV Attacks
Highest caliber prevention with unified security
Security at Hyperscale
On-demand expansion with Hyperscalability
Efficient Operations
Cut operation management time by up to 80%
Introducing New Quantum Security Gateways
All Quantum Security Gateways come with Check Point’s award-winning SandBlast Network right out of the box. Check Point protects enterprises from the 5th Generation of sophisticated multi-vector cyber attacks versus 3rd Generation of protection provided by other firewalls.
Specifications:
Enterprise Testing Conditions |
Threat Prevention1 (Gbps) |
7.4 |
NGFW2 (Gbps) |
17 |
IPS Throughput (Gbps) |
19 |
Firewall Throughput (Gbps) |
37 |
RFC 3511, 2544, 2647, 1242 PERFORMANCE (LAB) |
Firewall 1518B UDP (Gbps) |
63 |
VPN AES-128 (Gbps) |
9.81 |
Connections per Second |
230,000 |
Concurennt Connections |
4/8/16M |
Additional Features |
Highlights |
- 1x CPUs, 8 physical cores, 16 virtual cores
- 1x 480GB SSD storage (2x in Plus)
- 1 AC or DC power supply (2x in Plus)
- 16, 32 and 64 GB memory options
- Lights-Out-Management (included in Plus)
- Virtual Systems (Base/Plus/max mem): 10/20/20
|

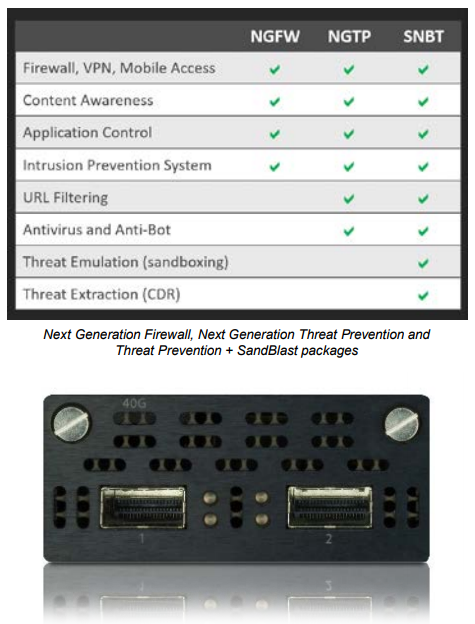

Network Expansion Slot Options (1 of 1 slots open) |
- 8x 10/100/1000Base-T RJ45 port card, up to 26 ports
- 4x 1000Base-F SFP port card, up to 8 ports
- 4x 10GBase-F SFP+ port card, up to 8 ports
- 2x 40GBase-F QSFP+ port card, up to 4 ports
|
Content Security |
First Time Prevention Capabilities |
- CPU-level, OS-level and static file analysis
- File disarm and reconstruction via Threat Extraction
- Average emulation time for unknown files that require full sandbox evaluation is under 100 seconds
- Maximal file size for Emulation is 100 MB
- Emulation OS Support: Windows XP, 7, 8.1, 10
|
Applications |
- Use 8,000+ pre-defined or customize your own applications
- Accept, prevent, schedule, and apply traffic-shaping
|
Data Loss Prevention |
- Classify 700+ pre-defined data types
- End user and data owner incident handling
|
Dynamic User-based Policy |
- Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid, Terminal Servers and with 3rd parties via a Web API
- Enforce consistent policy for local and remote users on Windows, macOS, Linux, Android and Apple iOS platforms
|
Network |
Network Connectivity |
- Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems)
- 802.3ad passive and active link aggregation
- Layer 2 (transparent) and Layer 3 (routing) mode
|
High Availability |
- Active/Active L2, Active/Passive L2 and L3
- Session failover for routing change, device and link failure
- ClusterXL or VRRP
|
IPv6 |
- NAT66, NAT64, NAT46
- CoreXL, SecureXL, HA with VRRPv3
|
Unicast and Multicast Routing (see SK98226) |
- OSPFv2 and v3, BGP, RIP
- Static routes, Multicast routes
- Policy-based routing
- PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3
|
Power Requirements |
Single Power Supply rating |
300W |
AC power input |
100 to 240V (47-63Hz)) |
Power consumption max |
139W/275W |
Maximum thermal output |
938 BTU/hr. |
Dimensions |
Enclosure |
1RU |
Dimensions (WxDxH) |
17.2 x 20 x 1.73 in. (438 x 508 x 44mm) |
Weight |
17.6/19.8 lbs. (8.45/9 kg) |
Environmental Conditions |
Operating |
0° to 40°C, humidity 95% |
Storage |
–20° to 70°C, humidity 95% |
Certifications |
Safety |
UL, CB, CE, TUV GS |
Emissions |
FCC, CE, VCCI, RCM/C-Tick |
Environmental |
RoHS, WEEE, REACH, ISO14001 |
1 Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot, SandBlast Zero-Day Protection
2 Includes Firewall, Application Control, IPS
