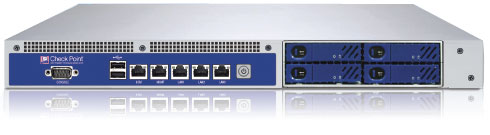

Check Point Smart-1 25 Appliance
Extensible Security Management

Check Point Smart-1 Overview:

Smart-1 appliances deliver Check Point’s market leading security management software blades on a dedicated hardware platform specifically designed for mid-size and large enterprise security networks. Based on Check Point’s software blade architecture, the Smart-1 appliances are first to deliver a unified management solution for network, IPS and endpoint security with unsurpassed extensibility.

The Check Point Smart-1 5 appliance offers advanced, turnkey security management for enterprises with 5 to 25 gateways. It has a capacity of up to 500 GB of integrated log storage.

Base Configuration

• 5 1GbE LAN ports
• Console port
• LOM port
• 2 USB ports
• 4 500GB hard disk drives in a RAID 10 configuration

Benefits

• Provides a comprehensive set of security management Software Blades in a turnkey security management appliance
• Maximize efficiency with a single unified management console for network and endpoint security
• Ensure operational continuity for the most demanding environments

Features:

Integrated network, IPS, and endpoint security management
Smart-1 Appliances provide central management for all Check Point products. From SmartDashboard, an administrator can define and enforce firewall, VPN, IPS, endpoint and more policies, track logs, monitor security and network activity, view reports on network and security activity trends, and centrally distribute security and software updates.

Built-in support for SANs and up to 12TB of on-board RAID storage
Smart-1 Appliances provide up to 12 TB of built-in storage as well as high performance fibre channel connectivity to SANs for backup, disaster recovery, and compliance.

High degree of reliability and serviceability with redundant and hot-swappable components and integrated Lights-Out-Management (LOM)
Smart-1 Appliances support Lights-Out Management (Out-of-Band Management) allowing users to remotely monitor and control the appliance, including device maintenance and administration. Several add-on options are available including a Fibre Channel SAN module, redundant, hot swappable power supply and hard drives.

Multi-Domain Security Management
Get more security and control by segmenting your security management into multiple virtual domains.

Any size business can benefit—easily creating virtual domains based on geography, business unit or security function to strengthen security and simplify management.

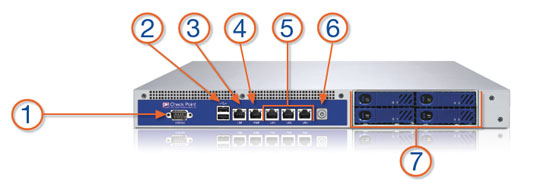

Specifications:

1. Console port
2. USB ports
3. LOM port
4. Management port
5. LAN ports
6. On\Off button
7. Hard disk drives

Smart-1 Management Software Blades
Smart-1 Appliances	5	25	50	150
Managed Gateways	5 up to 25	25 up to 50	50 up to 150	150 up to unlimited
Managed Domains	1	1	1 up to 3/5/10/50	3 up to 5/10/50
Multi-Domain Security Management (Provider-1)	-	-
Network Policy Management
Endpoint Policy Management
Logging and Status
SmartProvisioning
Monitoring	O
User Directory	O
SmartEvent Intro	O		*	*
Management Portal	O	O	O	O
SmartWorkflow	O	O	O	O
SmartEvent	X	O	O*	O*
SmartReporter	X	O	O*	O*
Global Policy Blade	X	X	O	O
Domain Blades	X	X	O	O

- Included
O - Optional
X - Not supported
* - Not supported on Smart-1 appliances running Multi-Domain Security Management

Smart-1 Product Highlights
Smart-1 Appliances	5	25	50	150
Management HA	Included	Included	Included	Included
Logs/sec	7,500	14,000	30,000	30,000
Storage	1 x 0.5 TB	4 x 0.5 TB	4 x 1 TB	4 x 1 TB, up to 12 TB
Storage Type	-	RAID 10	RAID 10	RAID 10
Fibre Channel SAN card	-	-	Optional	Optional
Out-of-band management	-	Integrated	Integrated	Integrated



SecurePlatform
Secure OS	Pre-hardened, optimized operating system
Web based administration	Enables quick, easy, and secure administration from anywhere in the network
Backup and restore	For disaster recovery planning
Centralized administrative rights	RADIUS authentication and RADIUS groups

Smart-1 Hardware Specifications
Smart-1 Appliances	5	25	50	150
Enclosure	1U	1U	2U	3U
Built-in Interfaces	5 Copper GbE	5 Copper GbE	4 Copper GbE	4 Copper GbE
Dimensions (standard)	17 x 10.9 x 1.75 in.	17 x 21.7 x 1.75 in.	22.8 x 17.4 x 3.5 in.	24.9 x 17.4 x 5.2 in.
Dimensions (metric)	431 x 277 x 44 mm	431 x 551 x 44 mm	580 x 442 x 88 mm	632 x 442 x 131 mm
Weight	6kg (13.2 lbs)	13kg (28.7 lbs)	23.5kg (51.8 lbs)	29.5kg (65 lbs)
LCD Display		-
Power supply	1	2	2	3
Power Input	AC 100 ~ 240V @ 50 ~ 60Hz	AC 100 ~ 240V @ 50 ~ 60Hz	AC 90 ~ 264V @ 47 ~ 63Hz	AC 90 ~ 264V @ 47 ~ 63Hz
DC Option	-	-		-
Power Supply Spec (Max)	150W	2 x 250W	2 x 600W	3 x 930W
Power Consumption (Max)	70.5W	135.8W	505.3W	399.6W
Operating environment range	Temperature: Ambient operating 0~40C, Humidity: 5~95% non-condensing (RH)
Compliance	CE, FCC Class A, RoHS

Documentation:

Download the Check Point Smart-1 25 Datasheet (PDF).
